iOS

This article guides you through setting up Facebook as an identity provider, enabling your iOS game to access Player Network authentication services.

Prerequisites

1. Set up the Facebook app on Meta for Developers

1. Register for an account

Before you can configure your app for the required platforms, you need to register a Facebook developer account and create an app in the Facebook App Dashboard.

1. Go to the Facebook website. Register for an account and finish the account authentication (by email or phone) according to the prompts.

2. Activate a developer account in Meta for Developers.



3. Consent to the agreement and continue.



4. Complete mobile phone verification.



5. Complete email verification.



6. Complete the registration.



7. Add Facebook SDK to the project in Meta for Developers.

2. Create an app

1. Click Create App in the upper right corner.



2. Select Authenticate and request data from users with Facebook Login as the app type.



3. Select Business if available, else proceed to the next step.



4. Enter the basic information.
   The FACEBOOK_DISPLAYNAME in the INTLConfig.ini configuration file should be the App name here.



5. Agree and continue.



3. Configure the app

caution

Follow Facebook specifications to enter the Privacy Policy URL, User Data Deletion, and Terms of Service URL. If you do not follow Facebook specifications, Facebook may disable your app after it is released.

note

For apps that have been already submitted to Facebook, they can continue to use Facebook Login For Gaming. New apps that have not been submitted are only allowed to use Facebook Login, see Facebook Login For Gaming for more information.

1. In the left sidebar, click App Settings > Basic to view basic information about the application, such as App ID and App Secret.



2. In the Privacy Policy URL field, enter the web address of the Privacy Policy.

3. In the User Data Deletion field, select the data deletion instructions URL, and enter the web addresses according to the user's instructions for data deletion.

4. In the Terms of Service field, Enter the URL of the Terms of Service webpage.

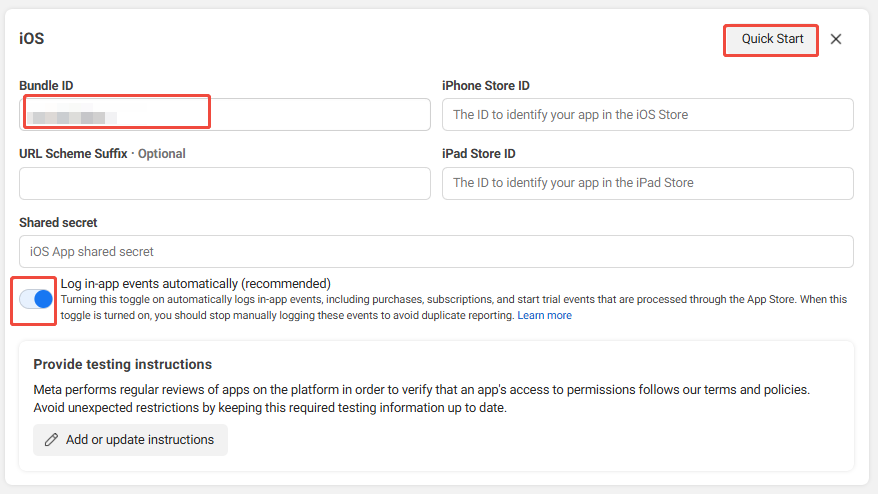

5. Click Add Platform and select iOS to add an iOS app.



6. Enter the configuration directly, or click Quick Start in the top right corner of the platform configuration interface and set the configuration based on the guide.



7. Click Save Changes to save the configuration.

Configure Facebook Login

1. In the Facebook App Dashboard, click Use cases > Customize.

2. Select Settings under Facebook Login.
3. In Valid OAuth Redirect URIs, enter https://common-web.intlgame.com/jssdk/facebooklogincallback.html and https://test-common-web.intlgame.com/jssdk/facebooklogincallback.html.
4. Turn on Embedded Browser OAuth Login.

5. Click Save changes at the bottom of the page to save the configurations.

4. Add the testing permissions

Before the app is released, only test users or users who are added into the permission list have access to Facebook functions.

1. In Facebook App Dashboard, click Roles.
2. Click Add Administrators/Add Developers/Add Testers to add respective roles.

5. Verify your business

Certain Meta technologies or features require you to go through the Meta business verification. For more information, reach out to the Player Network representative.

2. Create an account for Player Network Console.
3. Create a new project for your game, or join an existing one.
4. Download the SDK.
5. Integrate the SDK.
6. Add Facebook as an authentication method for your project on Player Network Console.

Step 1: Configure the SDK for Facebook login

1. Open the INTLSDK/Scripts/INTLConfig/Editor/Resources/INTLConfig.ini file.

   INTLConfig.ini

   [INTL environment]
   # WARNING: You should change this URL to the production environment when you release your game.
   INTL_URL = https://test.intlgame.com
   GAME_ID = {INTL_GAME_ID}
   SDK_KEY = {INTL_SDK_KEY}
   [INTL Log]
   LOG_LEVEL = 1
   LOG_CONSOLE_OUTPUT_ENABLE = 1
   LOG_FILE_OUTPUT_ENABLE = 1
   LOG_ENCRYPT_ENABLE = 0
   LOG_COMPRESS_ENABLE = 0
   [Facebook channel configuration]
   FACEBOOK_APP_ID = {INTL_FACEBOOK_APP_ID}
   FACEBOOK_DISPLAYNAME = {INTL_APP_NAME}
   • Set the SDK backend environment to INTL_URL = https://test.intlgame.com.
   • Replace {INTL_GAME_ID} and {INTL_SDK_KEY} with the GAME_ID and SDK_KEY assigned by Player Network Console.
   • Set LOG_LEVEL = 1, LOG_CONSOLE_OUTPUT_ENABLE = 1, LOG_FILE_OUTPUT_ENABLE = 1, LOG_ENCRYPT_ENABLE = 0, and LOG_COMPRESS_ENABLE = 0 to output console logs and log files without encrypting or compressing the output.
   • Replace {INTL_FACEBOOK_APP_ID} with the Facebook App ID.
   • Replace {INTL_APP_NAME} with the name of your Facebook app.

2. Add Facebook to the Info.plist file.

   Unity

   Check the predefined values in INTLFacebookKit.projmods and replace {Facebook_APP_ID} with the Facebook App ID before exporting the Xcode project from Unity.

   {
       "group": "INTL",
       "Info.plist":{
           "LSApplicationQueriesSchemes":
           [
               "fb-messenger-api",
               "fbshareextension",
               "fbauth2",
               "fb-messenger-share-api",
               "fbapi",
               "fb",
           ],
           "CFBundleURLTypes" :
           [
               {
                   "CFBundleTypeRole":"Editor",
                   "CFBundleURLName":"Facebook",
                   "CFBundleURLSchemes":["fb{Facebook_APP_ID}"]
               }
           ]
       },
   }

   Unreal Engine

   Player Network SDK 1.18 or later

   Open and modify the file that corresponds to your SDK version:

   • For V1.24 or later: INTLSDK/Source/INTLFacebook/Libs/iOS/INTLFacebook_UPL.xml
   • For V1.18 to V1.23: INTLSDK/Source/INTLConfig/Configs/iOS/Plist/INTLFacebook.plist

   <key>CFBundleURLSchemes</key>
   <array>
       <string>fb{INTL_FACEBOOK_APP_ID}</string>
   </array>

   Before Player Network SDK 1.18

   Go to Unreal Engine > Settings > Project Settings > Platforms > iOS > Extra Plist Data to modify the configuration and add SDK in the PLIST file.



   <key>LSApplicationQueriesSchemes</key>
   <array>
       <string>fb</string>
       <string>fb-messenger-api</string>
       <string>fbshareextension</string>
       <string>fbauth2</string>
       <string>fb-messenger-share-api</string>
       <string>fbapi</string>
   </array>
   <key>CFBundleURLTypes</key>
   <array>
       <dict>
           <key>CFBundleURLName</key>
           <string>Facebook</string>
           <key>CFBundleTypeRole</key>
           <string>Editor</string>
           <key>CFBundleURLSchemes</key>
           <array>
               <string>fb{INTL_FACEBOOK_APP_ID}</string>
           </array>
       </dict>
   </array>

   Replace {INTL_FACEBOOK_APP_ID} with the Facebook App ID of the game obtained in Step 2.

3. Configure ClientToken. To obtain a ClientToken, go to the App Dashboard on the Facebook Developer platform, and select App settings/Advanced/Client token. For more information, see Getting Started with the Facebook SDK for iOS.



   note

   ClientToken configuration is added for the Facebook channel to resolve the problem of the app failing when fb graph api is called too many times in a short period of time.
   This feature is effective for V1.19.03 and later versions. The following configurations are not necessary for V1.19.02 and earlier.

   Unity

   Add ClientToken configuration to intlconfig.ini.

   FACEBOOK_CLIENT_TOKEN = CLIENT-TOKEN

   Add ClientToken configuration to the projmods file.

   "FacebookClientToken":"CLIENT-TOKEN"

   Unreal Engine

   Add ClientToken configuration to intlconfig.ini.

   FACEBOOK_CLIENT_TOKEN = CLIENT-TOKEN

   Add ClientToken configuration to the plist file.

   </array>
   <key>FacebookAppID</key>
   <string>APP-ID</string>
   <key>FacebookClientToken</key>
   <string>CLIENT-TOKEN</string>
   <key>FacebookDisplayName</key>
   <string>APP-NAME</string>
   </array>

Step 2: Add Facebook login

For iOS, Player Network checks the web login state before the app login state.

• If Safari is logged in to Facebook, Player Network opens the web client for login.
• If Safari is not logged in to Facebook, Player Network then checks if the Facebook app is installed.
  • If the Facebook app is installed, Player Network opens the Facebook app for login. If players cancel the login on the app, they can continue to log in on the web client.
  • If the Facebook app is not installed, Player Network opens the web client for game login.

Player Network authentication services also supports Facebook Login for Gaming. For more information, see the Technical Implementation section of the Facebook official documentation.

1. Add an observer to handle authentication callbacks.

   Unity

   // Add callbacks
   public void AddAuthObserver()
   {
       INTLAPI.AddAuthResultObserver(OnAuthResultEvent);
   }

   // Remove callbacks
   public void RemoveAuthObserver()
   {
       INTLAPI.RemoveAuthResultObserver(OnAuthResultEvent);
   }

   // Process the INTLAuthResult callback
   public void OnAuthResultEvent(INTLAuthResult ret)
   {
       Debug.Log($"MethodID: {ret.MethodId}");

       string methodTag = "";
       if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_LOGIN)
       {
           methodTag = "Login";
       }
       else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_BIND)
       {
           methodTag = "Bind";
       }
       else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_AUTOLOGIN)
       {
           methodTag = "AutoLogin";
       }
       else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_QUERY_USER_INFO)
       {
           methodTag = "QueryUserInfo";
       }
       else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_GET_AUTH_RESULT)
       {
           methodTag = "GetAuthResult";
       }
   }

   Unreal Engine

   C++ Event Handling (above v1.15)

   //configure callback
   FINTLAuthEvent authEvent;
   authEvent.AddUObject(this, &OnAuthResult_Implementation);
   UINTLSDKAPI::SetAuthResultObserver(authEvent);
   // Remove callbacks
   UINTLSDKAPI::GetAuthResultObserver().Clear();

   void OnAuthResult_Implementation(FINTLAuthResult ret)
   {
       UE_LOG(LogTemp, Warning, TEXT("MethodID: %d"), ret.MethodId);
   }

   Unreal Event Handling

   void OnAuthResult_Implementation(FINTLAuthResult ret)
   {
       UE_LOG(LogTemp, Warning, TEXT("MethodID: %d"), ret.MethodId);
   }

2. Call the AutoLogin method.

   Unity

   INTLAPI.AutoLogin();

   Unreal Engine

   UINTLSDKAPI::AutoLogin();

3. Call the Login method to ask for user input if auto-login fails.

   • Facebook Login

     Unity

     // taking Facebook as example
     INTLAPI.Login(INTLChannel.Facebook);

     Unreal Engine

     // taking Facebook as example
     UINTLSDKAPI::Login(EINTLLoginChannel::kChannelFacebook);

   • Facebook Login for Gaming

     Call the Login method with the permission parameter to retrieve Facebook profile picture. For more information, see Requesting User's Profile Picture.

     Unity

     //Add a `gaming_user_picture` permission to the original permissions string, like this: `"email,public_profile,gaming_user_picture"`
     public static void Login(string channel, string permissions = "gaming_profile,gaming_user_picture", string extraJson = "{}");

     Unreal Engine

     //Add a `gaming_user_picture` permission to the original permissions string, like this: `"email,public_profile,gaming_user_picture"`
     UFUNCTION(BlueprintCallable, Category = "INTLSDKAPI")
     static bool Login(
     const EINTLLoginChannel Channel,
     const FString Permissions = "gaming_profile,gaming_user_picture",
     const FString ExtraJson = "{}");

4. Sync client authentication state with the game's backend and wait for the final authentication result.

Limited Login

caution

• Player Network SDK v1.15 is required.
• Only supported on iOS devices.

The Facebook Limited Login mode prevents your game from tracking additional user information that's used for personalizing the app or measuring advertising effectiveness. For more information, see Limited Login.

When the limited login calls the login API, the extraJson parameter "{\"login_mode\":1}" must be passed in.

Unity

INTLAPI.Login(INTLChannel.Facebook,"","{\"login_mode\":1}");

Unreal Engine

UINTLSDKAPI::Login(EINTLLoginChannel::kChannelFacebook,"","{\"login_mode\":1}");

[Optional] Set up email permissions

Set up permissions to obtain the email address of players during Facebook login, returned as email in the ChannelInfo of AuthResult.

• Email masking can be performed on the returned email according to compliance requirements, reach out to the Player Network representative to enable this feature.
• The hashed base64(sha256(email)) can be reported to the backend logs, reach out to the Player Network representative to enable this feature.
• Can be used to verify if email is present in a player's profile or third-party channel information, reach out to the Player Network representative to enable this feature.
• Can be used to enable Private Set Membership (PSM) for Firebase on iOS, see Firebase iOS configurations for more details.

1. Configure the email permission on Meta for Developers. The email permission requires Advanced access, in order for all apps to be able to obtain player email.



2. Add email to the permissions parameter when calling the Login API. If the permissions parameter is not specified or is empty when calling the Login API, the email permission will be added.

3. Enable email return on Player Network Console by setting return_email to YES, see Configure Third-party Channels for detailed procedures.

Step 3: Test the login function

Search for the keyword "AuthResult" in the Player Network SDK logs to verify if the correct channel name and OpenID are returned. If they are, it indicates a successful configuration and the login function has been added successfully.

If you have trouble implementing Facebook login, see Facebook FAQs.
